5" Diameter Condenser Fan Motor, 1/8 HP, 208-230V, 1075RPM, 1/2" Shaft, 2249

️ Condenser Fan Motor | 1/8 HP | 1075 RPM | 208–230V | Shaft-Down | Part #2249

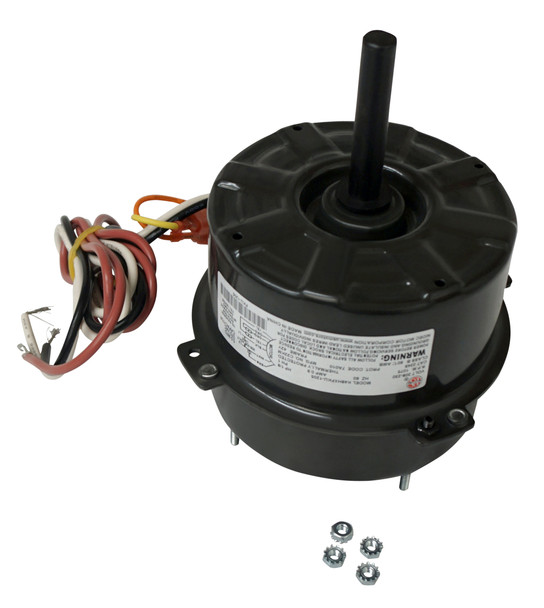

Restore efficient cooling performance with this brand-new residential condensing unit fan motor, part #2249. Designed for shaft-down mounting in HVAC systems, this compact 5" diameter motor features a durable “Cap-Can” clam shell construction and delivers 1075 RPM208–230V. Its PSC design, ball bearings, and automatic thermal overload protection ensure long-lasting, energy-efficient operation in demanding environments.

⚙️ Technical Specifications:

• ⚡ Electrical Type: PSC (Permanent Split Capacitor)
• Speed: Single (1075 RPM)
• Voltage: 208–230V | Amps: 0.90 | Frequency: 60 Hz
• Shaft: Flat ½" x 2-¾" | Mount: Stud | Bolt Circle: 4.312"
• Frame: NEMA 56Z | Diameter: 5.0"
• Rotation: Reversible | Bearings: Ball
• ️ Enclosure: TEAO (Totally Enclosed Air Over)
• Overload Protection: Automatic Reset
• Construction: “Cap-Can” / “Clam Shell” style
• Condition: Brand New – Motor Only (Base Not Included)

✅ Ideal For:

• Residential HVAC condensing units and heat pumps (up to 3.5 tons)
• Outdoor fan assemblies requiring shaft-down mounting
• Replacement for GE, Emerson, Carrier, Lennox, and other OEM motors

️ Installation Tips:

• ⚡ Disconnect power before servicing unit
• Remove old motor and inspect mounting studs and capacitor
• Align motor using #8-32 studs and 4.312" bolt circle
• Connect 42 leads per wiring diagram (capacitor not included)
• Test rotation and airflow before full reassembly
• ️ Ensure proper clearance and airflow direction

Reliable cooling. Compact power. Built for residential HVAC systems.
