Washer Belt fits Whirlpool, 8181670, W10116915, 8182633, 8183269, WPW10388414

Washing Machine Drive Belt | 7‑Rib | Replaces WPW10388414

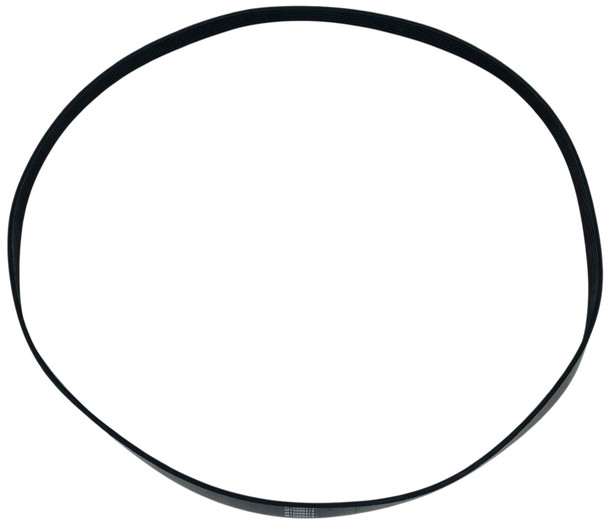

Brand new Washing Machine Drive Belt replacing Whirlpool part WPW10388414. This belt transmits power from the motor to rotate the washer tub. A worn or stretched belt can cause squealing, burning smells, or loss of agitation and spin.

The belt measures 48" total length, features 7 ribs / 6 grooves, and is 5/8" wide. A tight fit during installation is normal and ensures proper tension during operation. Always verify fit with your model number.

Replaces Part Numbers

WPW10388414 AP6020747 W10388414 2024684 8181670 8182633 8183269 PS11754067 W10116915

Compatible Models

GHW9100LW1, GHW9150PW0, GHW9200LW0, GHW9100LW2, GHW9100LW0, GHW9150PW4, GHW9200LQ0, GHW9400PL0, GHW9100LQ1, GHW9250ML0, GHW9400PW0, GHW9150PW1, GHW9300PW4, GHW9250MW0, GHW9250ML1, GHW9400PW4, GHW9250MW1, GHW9100LQ0, GHW9250ML2, GHW9150PW3, GHW9150PW2, GHW9400PL4, GHW9250MT0, GHW9160PW0, GHW9250MW2, GHW9300PW0, GHW9400PW1, 110.429222, GHW9400PL1, GHW9400PT0, GHW9100LQ2, 110.448322, WFW9200SQ00, GHW9250MQ0, 110.42822201, GHW9400SU0, WFW9400SU00, 110.429262, GHW9460PL0, GHW9400PL2, MFW9700SQ1, 110.429322, GHW9460PW0, GHW9400PW2, MFW9600SQ0, WFW9400SW00, MFW9700SB0, KHWS02RMT3, WFW9200SQ02, GHW9250MT1, GHW9300PW1, GHW9400PT1, KHWS01PMT1, MFW9600SQ1, GHW9250MT2, KHWS01PMT2, WFW9200SQA10, GHW9160PW4, GHW9400PT4, 110.428222, 110.429242, 110.449322, 110.449362, 7MGHW9100MW0, GHW9300PW2, KHWS01PMT3, KHWS02RMT0, WFW9600TA00, WFW9400SU01, WFW9600TW00, 7MGHW9150PW0, GHW9160PW1, GHW9400PW3, GHW9460PW1, KHWS02RMT1, MFW9700SQ0, WFW9200SQA11, 110.428322, 110.429342, 110.429362, WFW9200SQ01, 110.449342, GHW9160PW3, WFW9400ST00, WFW9400SW01, GHW9250MQ1, GHW9400PL3, GHW9460PL4, KHWS02RWH0, 110.42832201, 110.428342, 110.459864, 7MGHW9150PW1, 7MGHW9150PW2, GHW9300PW3, GHW9460PL1, GHW9460PW2, GHW9460PW4, MFW9700SB1, WFW9400SZ00, WFW9700VA01, 110.2647751K, 110.42822202, 110.42822203, 110.4282222, 110.428242, 110.42824201, 110.42824202, 110.42824203, 110.428262, 110.42826201, 110.42834201, 110.428362, 110.42836201, 110.42922201, 110.42922202, 110.42922203, 110.42924201, 110.42924202, 110.42924203, 110.42926201, 110.42926202, 110.42926203, 110.4292622, 110.43902201, 110.43902202, 110.43902203, 110.448263, 110.44826301, 110.44832201, 110.44832202, 110.448342, 110.44834201, 110.44834202, 110.448362, 110.448363, 110.44836301, 110.449213, 110.44921301, 110.44921302, 110.449313, 110.44931301, 110.44931302, 110.44932201, 110.44932202, 110.44932203, 110.44934201, 110.44934202, 110.44934203, 110.44936201, 110.44936202, 110.44936203, 110.450814, 110.45081401, 110.45081402, 110.45081403, 110.45081404, 110.450874, 110.45087401, 110.45087402, 110.45087403, 110.45087404, 110.450884, 110.45088401, 110.45088402, 110.45088403, 110.45088404, 110.450894, 110.45089401, 110.45089402, 110.45089403, 110.45089404, 110.450914, 110.45091401, 110.45091402, 110.45091403, 110.45091404, 110.458014, 110.458624, 110.45862401, 110.45862402, 110.45862403, 110.45862404, 110.458724, 110.45872401, 110.45872402, 110.45872403, 110.45872404, 110.459624, 110.45962401, 110.45962402, 110.45962403, 110.45962404, 110.459664, 110.45966401, 110.45966402, 110.45966403, 110.45966404, 110.459724, 110.45972401, 110.45972402, 110.45972403, 110.45972404, 110.459764, 110.45976401, 110.45976402, 110.45976403, 110.45976404, 110.459814, 110.45986401, 110.45986402, 110.45986403, 110.45986404, 110.459914, 110.459924, 110.459944, 110.45994401, 110.459964, 110.45996401, 110.45996402, 110.45996403, 110.45996404, 110.467427, 110.46742701, 110.46742702, 110.46747801, 110.46747802, 110.467527, 110.46752701, 110.46752702, 110.46757801, 110.46757802, 110.470816, 110.47081601, 110.47081602, 110.470866, 110.47086601, 110.47086602, 110.470876, 110.47087601, 110.47087602, 110.470886, 110.47088601, 110.47088602, 110.470896, 110.47089601, 110.47089602, 110.470916, 110.47091601, 110.47091602, 110.477018, 110.47701801, 110.477118, 110.47711801, 110.477518, 110.47751801, 110.477618, 110.47761801, 110.477817, 110.47781701, 110.47781702, 110.477878, 110.47787801, 110.477888, 110.47788801, 110.477897, 110.47789701, 110.47789702, 110.477917, 110.47791701, 110.47791702, 110.477978, 110.47797801, 110.477988, 110.47798801, 110.47799701, 110.47799702, 110.478527, 110.47852701, 110.47852702, 110.47852703, 110.478827, 110.47882701, 110.47882702, 110.47882703, 110.478927, 110.47892701, 110.47892702, 110.47892703, 110.499626, 110.49962601, 110.49962602, 110.49962603, 110.499726, 110.49972601, 110.49972602, 110.49972603, 7MGHW9400PW0, 7MGHW9400PW1, 7MGHW9400PW2, GHW9160PW2, GHW9200LW, GHW9250MQ2, GHW9400PT2, GHW9400PT3, GHW9460PL2, GHW9460PL3, GHW9460PW3, KHWS01PWH0, KHWS02RMT2, KHWS02RWH1, KHWS02RWH2, KHWS02RWH3, KHWV01RSS0, MFW9800TK0, MFW9800TQ0, MWFW9200SQ00, NFW7500VM00, NFW7500VM01, NFW7500VW00, NFW7500VW01, NFW7600XW00, WFW9200SQ03, WFW9200SQ04, WFW9200SQ10, WFW9200SQA12, WFW9300VU02, WFW9300VU03, WFW9300VU04, WFW9400SB00, WFW9400SB01, WFW9400SB02, WFW9400SBA10, WFW9400ST01, WFW9400ST02, WFW9400STA10, WFW9400SU02, WFW9400SW02, WFW9400SW03, WFW9400SW04, WFW9400SWA10, WFW9400SZ01, WFW9400SZ02, WFW9400SZ03, WFW9400SZ04, WFW9400SZA10, WFW9400VE01, WFW9400VE02, WFW9400VE03, WFW9410XW00, WFW9450WL00, WFW9450WR00, WFW9450WW00, WFW9451XW00, WFW9470WL00, WFW9470WL01, WFW9470WR00, WFW9470WR01, WFW9470WW00, WFW9470WW01, WFW9500TC00, WFW9500TC01, WFW9500TC02, WFW9500TC03, WFW9500TW00, WFW9500TW01, WFW9500TW02, WFW9500TW03, WFW9550WL00, WFW9550WL01, WFW9550WL10, WFW9550WR00, WFW9550WR01, WFW9550WW00, WFW9550WW01, WFW9550WW10, WFW9600TA01, WFW9600TA02, WFW9600TB00, WFW9600TC00, WFW9600TU00, WFW9600TW01, WFW9600TW02, WFW9600TZ00, WFW9630YL00 , WFW9630YW00 , WFW9640XW00, WFW9700VA00, WFW9700VW00, WFW9700VW01, WFW9750WL00, WFW9750WL01, WFW9750WL02, WFW9750WR00, WFW9750WR01, WFW9750WR02, WFW9750WW00, WFW9750WW01, WFW9750WW02

️ What This Drive Belt Does

• Transfers motor power to rotate the washer drum
• Ensures proper agitation and spin performance
• Maintains correct tension for smooth operation
• Replaces worn, cracked, or stretched belts

⚠️ Common Symptoms This Part Fixes

• Burning smell during operation
• Washer will not agitate
• Washer pumps but will not spin
• Squealing or slipping noises

Installation Notes

• Disconnect power before servicing
• Remove rear panel to access motor and pulley
• Install belt around motor and drum pulleys — tight fit is normal
• Rotate drum by hand to seat belt fully
• Run a test cycle to confirm proper operation

Restore smooth, reliable washer performance with this OEM‑compatible 7‑rib drive belt.
