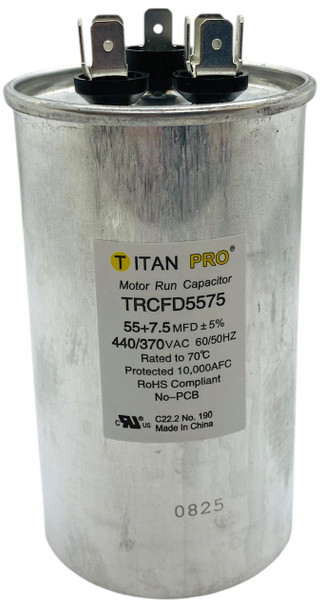

Titan Pro Run Capacitor, Round, 55+7.5 Mfd, 370V-440V, TRCFD5575

⚡ Titan Pro® Motor Dual Run Capacitor | Round | 55 + 7.5 MFD | 370/440 Volt | TRCFD5575

Brand new Professional Grade Titan Pro® Motor Dual Run Capacitor, model TRCFD5575. Engineered by an ISO‑certified manufacturer with over twenty years of OEM capacitor fabrication experience, Titan Pro® capacitors deliver long service life, stable performance, and reliable operation in demanding HVAC environments.

This dual‑rated 55 + 7.5 MFD capacitor supports both 370V and 440V systems and is rated for 60,000 hours of operational life. Built with Epoxidized Soybean Oil (ESO) and high‑grade metallized polypropylene film, it provides dependable motor support for compressors and fan motors.

Specifications

• Capacitance: 55 + 7.5 MFD (µF)
• Voltage Rating: 370–440 VAC
• Shape: Round
• Hertz: 50/60 Hz
• Capacitance Type: Dual
• Rated Temperature: Up to 70°C
• Internal Protection: 10,000 AFC
• Oil Type: Proprietary Epoxidized Soybean Oil (ESO)
• Compliance: RoHS Compliant
• Certifications: UL Listed C22.2 No. 190
• Material: Non‑PCB

Dimensions

• Diameter: 2.64"
• Height: 4.13" (add 0.5" for terminal height)
• Terminals: Three tri‑blade terminals (C, H, F)
• Terminal Size: 1/4" male quick‑connect

Applications

• Air conditioning compressors
• Refrigeration compressors
• Furnace blower motors
• Condenser fan motors
• Both ducted and ductless HVAC systems

Features & Benefits

• Heat Tolerant — Tested up to 60,000 hours of run time
• High‑Grade Construction — Metallized polypropylene film for durability
• ESO Oil Fill — Proprietary Epoxidized Soybean Oil for cooler operation
• Protected — 10,000 AFC pressure‑sensitive short‑circuit interrupting capability
• Tested — Continuous life tested, oil leak tested, and dielectric tested
• UL 810 Safety Standard compliant
• Long‑Life Operation — Designed for extended HVAC duty cycles

Replaces Part Numbers

G36‑333
12293
12194
A804‑5575

Engineered for long life, safety, and dependable HVAC performance — Titan Pro® capacitors deliver OEM‑grade reliability every time.
