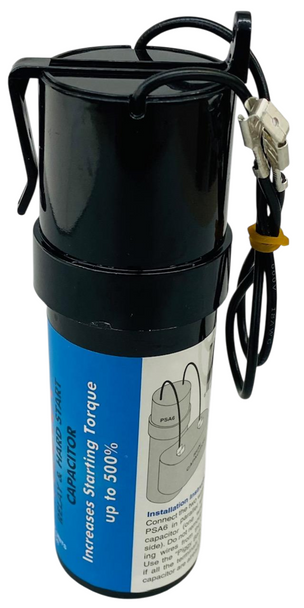

Start Assist, Relay & Hard Start Capacitor, SPP6, HS6, TQS6, 32702, PSA6

⚡ Start Assist Relay & Hard Start Capacitor | OEM‑Compatible | Replaces SPP6 / HS6 / TQS6 / 32702 / PSA6

This brand‑new Start Assist Relay & Hard Start Capacitor replaces SPP6, HS6, TQS6, 32702, and PSA6. Designed to dramatically increase compressor starting torque—up to 500%—this hard start kit is ideal for air conditioners struggling to start under heavy load, low voltage, or high head pressure conditions.

Compatible with 1/2 through 10 HP single‑phase air conditioner units operating between 90V and 277V. This start assist must be installed only on PSC (Permanent Split Capacitor) systems equipped with a run capacitor.

⚙️ Product Features

• Increases compressor starting torque up to 500%
• Wide voltage range: 90V–277V
• Compatible with 1/2–10 HP single‑phase AC units
• OEM‑style replacement for multiple hard start kits
• Designed for PSC units with an existing run capacitor
• Condition: Brand New – Unused

Replaces Part Numbers

SPP6, HS6, TQS6, 32702, PSA6

Common Fixes

• Air conditioner compressor struggling to start
• Low voltage or brownout conditions
• Compressor humming but not engaging
• Frequent breaker trips during startup
• Hard starting in high‑temperature or high‑pressure conditions

️ Installation Instructions

• Disconnect power before servicing the unit
• Locate the existing run capacitor in the electrical compartment
• Connect the two wires from the PSA6 in parallel with the run capacitor (one wire to each side)
• Do NOT remove any existing wires from the run capacitor
• If all terminals are in use, attach using the included “piggy‑back” terminal
• Secure wiring and restore power to test compressor startup

This hard start kit provides a powerful boost for compressors under heavy load, restoring reliable startup performance in PSC air conditioning systems.
