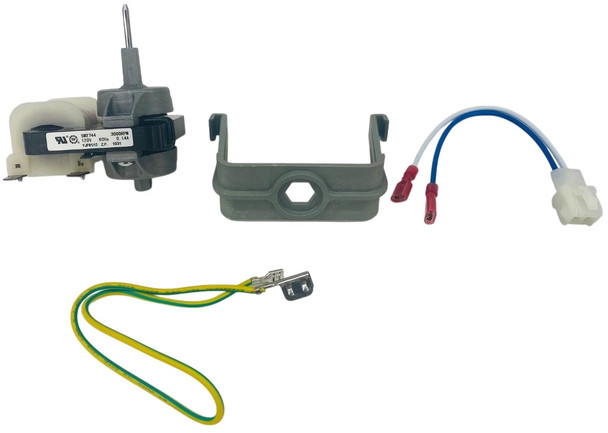

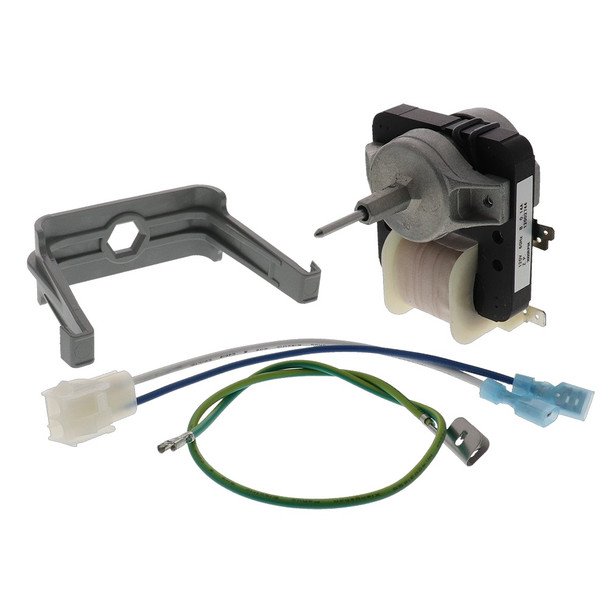

Refrigerator Evaporator Motor for Maytag Admiral, 12002744

❄️ Refrigerator Evaporator Motor | OEM‑Compatible | Replaces Maytag, Magic Chef, Admiral | Part 12002744 / SM2744

Brand‑new refrigerator evaporator motor designed to replace Maytag®, Magic Chef®, Admiral®, and other models using the 12002744 motor. This high‑efficiency motor circulates cold air throughout the freezer and refrigerator compartments, ensuring consistent temperatures and optimal cooling performance.

Rated at 3000 RPM, 120V, 60Hz, and 0.14A, this motor is a direct OEM‑style replacement for units using the YJF61/10 motor design.

⚙️ Product Features

• OEM‑compatible replacement for 12002744 / SM2744
• ⚡ Motor Specs: 3000 RPM, 120V, 60Hz, 0.14A
• ❄️ Restores proper airflow and cooling performance
• ️ Durable motor windings for long service life
• Direct‑fit design — no wiring modifications required
• Condition: Brand New – Unused

Replaces Part Numbers

AP4009649, WP8208342, 8208342, 1174059, 12002744VP, 67003917, 67006515, AH2004031, EA2004031, PS2004031

Compatible Refrigerator Models

MFD2560HES AFD2535DES MFD2561HES AFD2535DEW MFD2560HEW MFD2561HEW JCD2295HES KBFA25ERSS01 JCD2290HES AFD2535DEQ MFF2557HEW AFD2535DEB MFD2561HEB MFF2557HES MFD2560HEB MFF2557HEB AFB2534DEW MCD2257HES MFD2560HEQ KBFA25ERSS00 AFB2534DES MFD2561HEQ MFF2557KES AFB2534DEB JCB2280HES KBFA25ERBL01 KBFA25ERBL00 MCD2257HEB MFF2557HEQ JCD2290HEW JCD2292HTB KBFA25ERWH00 MFD2561KES AFB2534DEQ JCD2290HEB JCD2290HEQ KBFA25ERWH01 MCD2257HEQ MCD2257HEW MCD2257KES 596.735042 596.735042 596.735042 596.755024 596.755034 596.755044 596.755094 596.755124 596.755134 596.755144 596.755194 596.755224 596.755234 596.755244 596.755294 596.755324 596.755334 596.755344 596.755394 596.765025 596.765035 596.765045 596.765095 596.765125 596.765135 596.765145 596.765195 596.765225 596.765235 596.765245 596.765295 596.765325 596.765335 596.765345 596.765395 596.765726 596.765736 596.765746 596.765796 596.765826 596.765836 596.765846 596.765895 596.765896 596.765926 596.765936 596.765946 596.765996 596.766026 596.766036 596.766046 596.766096 JCB2280HEB JCB2280HEQ JCB2280HEW JCB2282HTB JCB2282HTW JCB2285HES JCD2292HTW MCB2256HEB MCB2256HES MCB2256HEW

️ Installation Tips

• Unplug refrigerator before servicing
• Remove freezer panel to access evaporator motor
• Verify fan blade spins freely before reassembly
• Ensure wiring harness is fully seated in the motor connector
• Test airflow after installation to confirm proper operation

OEM‑compatible performance. Reliable airflow. The ideal evaporator motor replacement for Maytag‑family refrigerators using part 12002744.
