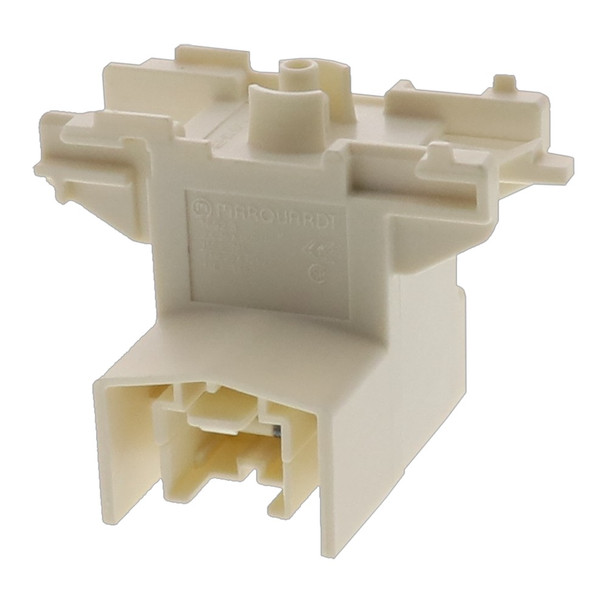

Dishwasher Power Switch fits Bosch, AP5326240, PS8728608, 00620775

⚡ Dishwasher Power Switch | On/Off Control | Replaces Bosch 00620775

Brand new Dishwasher Power Switch replacing Bosch part 00620775. This switch controls electrical power to the dishwasher and is a common fix for units with no power, dead displays, or unresponsive controls.

If your dishwasher will not turn on, intermittently loses power, or the control panel appears dead, a failed power switch is a frequent cause. Simple DIY replacement with basic tools.

Specifications

• Type: On/Off Power Switch
• Function: Supplies power to control board and user interface
• Direct‑fit replacement for Bosch dishwashers
• Restores power and responsiveness to the unit

⚠️ Common Symptoms This Part Fixes

• No power to dishwasher
• Control panel unresponsive
• Intermittent power loss
• Dishwasher will not start

Installation Notes

• Disconnect power before servicing
• Remove inner door panel to access switch
• Transfer wires one at a time to avoid miswiring
• Reassemble door and test for proper operation

Replaces Part Numbers

AP5326240 PS8728608 00620775 2692860 620775

Compatible Dishwasher Models

796.29002 796.29272 796.292729 796.29278 79629472001 79629478001 796.3140241 796.3140341 796.3141231 796.3141241 796.3142241 79631422411 796.3142341 796.3142341 796.3143371 796.3146241 796.3146241 796.3146341 796.3146341 796.3151221 796.3151221 796.3151321 796.3151321 796.3152221 796.3152221 796.3152321 796.3152321 796.3155261 796.3155361 796.3162231 796.3162331 WT1001CW WT1101CW WT1150CW/00 WT1201CV WT1201CW WT1301CW/00 WT1501CW/00 WT1701CV/00 WT1701CV/01 WT1701CW WT1701CW/00 WT1801HVA WT1801HWA WT1901CK WT1901CW WT4801CW/00 WT4870CW WT4970CW WT5001CW/00 WT5101HV/00 WT5480CW WT5480CW/00 WT5680HVA WT5680HVA/00 WT5680HWA WT7050CV/00 WT7060CV/00 WT7155CW/00 WT7300CV/01 WT7300CW/00 WT7300CW/01 WT7300CW/02 WT7305CV/00 WT7305CW/00 WT7400CV/00 WT7400CW/00 WT7405CV/00 WT7405CW/00 WT7500CW WT7500CW/00 WT7600HKA WT7600HKA/00 WT7600HWA WT7700HWA/01 WT7800CV/00 WT7880HWA/00 WT7900HBA/00 WT7900HBA/05

Restore full power and control functionality with this OEM‑compatible Bosch dishwasher power switch.
