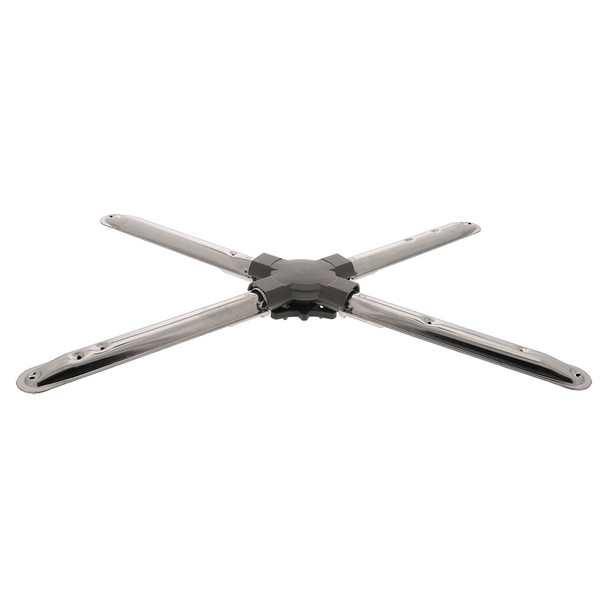

Dishwasher Lower Spray Arm fits Whirlpool, AP6230883, PS12070902, W11101428

Dishwasher Lower Spray Arm | Replaces Whirlpool W11101428

Brand new Exact Replacement Parts Dishwasher Lower Spray Arm replacing Whirlpool part W11101428. This OEM‑compatible spray arm sits on the lower rack and distributes water evenly across dishes to remove stuck‑on food and ensure a complete rinse.

A worn or damaged spray arm can lead to poor cleaning performance, water pooling, or uneven spray coverage. This replacement restores proper wash action and helps maintain optimal dishwasher performance.

Replaces Part Numbers

AP6230883, WPW10406822, 4534465, PS12070902, W10406822, W10665718, W10858786, W11101428

️ What This Spray Arm Does

• Sprays water uniformly across lower rack dishes
• Ensures full saturation and rinsing during wash cycles
• Helps remove stuck‑on food and debris
• Maintains proper water circulation inside the tub

⚠️ Common Symptoms This Part Fixes

• Dirty or poorly cleaned dishes on the lower rack
• Water pooling in the bottom of the dishwasher
• Cracked, warped, or deteriorated spray arm
• Weak or uneven spray coverage

Compatible Models

JDB9000CWB1 JDB9000CWB2 JDB9000CWB3 JDB9000CWP1 JDB9000CWP2 JDB9000CWP3 JDB9000CWS1 JDB9000CWS2 JDB9000CWS3 JDB9200CWP1 JDB9200CWP2 JDB9200CWS1 JDB9200CWS2 JDB9200CWS3 JDB9200CWX2 JDB9200CWX3 JDB9200CWX4 JDB9200CWY1 JDB9200CWY2 JDB9800CWP1 JDB9800CWP2 JDB9800CWP3 JDB9800CWS1 JDB9800CWS2 JDB9800CWS3 JDB9800CWX2 JDTSS243GX0 JDTSS244GL0 JDTSS244GM0 JDTSS244GP0 JDTSS244GS0 JDTSS245GX0 JDTSS246GL0 JDTSS246GM0 JDTSS246GP0 JDTSS246GS0 JDTSS247HS0 KDFE104DBL0 KDFE104DBL1 KDFE104DBL2 KDFE104DBL3 KDFE104DBL4 KDFE104DSS0 KDFE104DSS1 KDFE104DSS2 KDFE104DSS3 KDFE104DSS4 KDFE104DWH0 KDFE104DWH1 KDFE104DWH2 KDFE104DWH3 KDFE104DWH4 KDFE104HBL0 KDFE104HBS0 KDFE104HBS1 KDFE104HPS0 KDFE104HPS1 KDFE104HWH0 KDFE104HWH1 KDFE204EBL0 KDFE204EBL1 KDFE204EBL2 KDFE204EBL3 KDFE204ESS0 KDFE204ESS1 KDFE204ESS2 KDFE204ESS3 KDFE204EWH0 KDFE204EWH1 KDFE204EWH2 KDFE204EWH3 KDFE304DBL0 KDFE304DBL1 KDFE304DBL2 KDFE304DSS0 KDFE304DSS1 KDFE304DWH0 KDFE304DWH1 KDHE404DSS0 KDHE704DSS0 KDPE204GBS0 KDPE204GPS0 KDPE234GBS0 KDPE234GPS0 KDPE334GBS0 KDPE334GPS0 KDTE104DBL0 KDTE104DBL1 KDTE104DSS0 KDTE104DSS1 KDTE104DWH0 KDTE104DWH1 KDTE104EBL0 KDTE104EBL1 KDTE104EBL2 KDTE104EBL3 KDTE104EBS1 KDTE104EBS2 KDTE104EBS3 KDTE104ESS0 KDTE104ESS1 KDTE104ESS2 KDTE104ESS3 KDTE104EWH0 KDTE104EWH1 KDTE104EWH2 KDTE104EWH3 KDTE204DBL0 KDTE204DBL1 KDTE204DSS0 KDTE204DSS1 KDTE204DWH0 KDTE204DWH1 KDTE204EBL0 KDTE204EBL1 KDTE204EBL2 KDTE204EBL3 KDTE204EPA0 KDTE204EPA1 KDTE204EPA2 KDTE204EPA3 KDTE204EPA4 KDTE204ESS0 KDTE204ESS1 KDTE204ESS2 KDTE204ESS3 KDTE204EWH0 KDTE204EWH1 KDTE204EWH2 KDTE204EWH3 KDTE204GPS0 KDTE204GPS1 KDTE234GBL0 KDTE234GBL1 KDTE234GBS0 KDTE234GBS1 KDTE234GPS0 KDTE234GPS1 KDTE234GWH0 KDTE234GWH1 KDTE254EBL0 KDTE254EBL1 KDTE254EBL2 KDTE254EBL3 KDTE254ESS0 KDTE254ESS1 KDTE254ESS2 KDTE254ESS3 KDTE254EWH0 KDTE254EWH1 KDTE254EWH2 KDTE254EWH3 KDTE304DBL0 KDTE304DPA0 KDTE304DPA2 KDTE304DSS0 KDTE304DSS1 KDTE304DWH0 KDTE304GPS0 KDTE304GPS1 KDTE334DBL0 KDTE334DSS0 KDTE334DSS1 KDTE334DWH0 KDTE334GBS0 KDTE334GPS0 KDTE404DBL0 KDTE404DSP0 KDTE404DSS0 KDTE404DSS1 KDTE404DWH0 KDTE504DSS0 KDTE704DBL0 KDTE704DPA0 KDTE704DSS0 KDTE704DSS1 KDTE704DWH0

Installation Tips

• Remove old spray arm by lifting or unlocking center mount
• Ensure debris is cleared from the spray arm hub
• Snap or twist new spray arm into place until fully seated
• Spin by hand to confirm free movement before running a cycle

Restore strong wash performance and full spray coverage with this OEM‑compatible Whirlpool lower spray arm replacement.
