Bake Element for Whirlpool, Magic Chef, AP6007630, PS11740747, WP312309

Bake Element Replacement | Replaces Whirlpool® / Magic Chef® WP312309

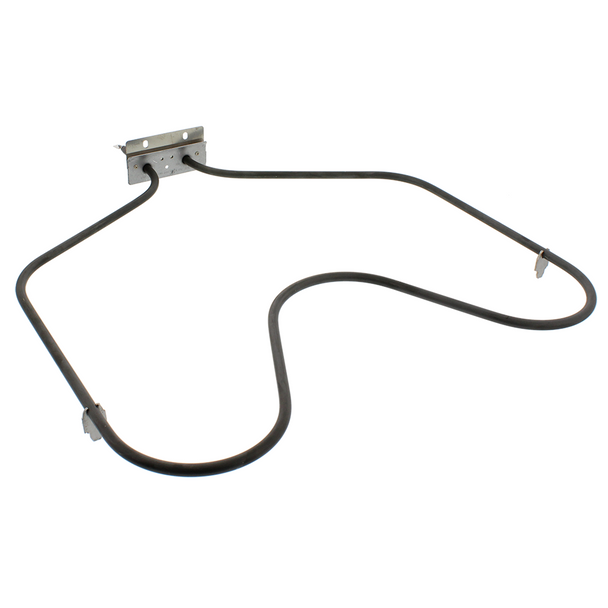

Brand new Lower Bake Element replacing Whirlpool® and Magic Chef® part WP312309. This OEM‑style heating element restores consistent oven performance for baking, roasting, and everyday cooking.

If your oven won’t heat, preheats slowly, or bakes unevenly, a failed bake element is one of the most common causes. This direct‑fit replacement installs easily and restores even, reliable heat.

Dimensions & Specifications

• Length (front to mounting bracket): 15‑1/2"
• Width: 16‑1/2"
• Width at mounting bracket: 2"
• Bracket to terminal end: 3"
• Mounting hole spacing: 1‑3/4" center‑to‑center
• Rating: 2600 Watts, 240 Volts

What This Part Fixes

• Little to no heat when baking
• Oven not heating evenly
• Slow or incomplete preheating
• Element will not heat
• Burnt or open‑circuit element

Installation Notes

• Disconnect power before servicing
• Remove mounting screws and pull element forward
• Transfer wires one at a time to avoid mis‑wiring
• Ensure terminals are fully seated and secure

Replaces Part Numbers

WP312309
AP6007630
312309
PS11740747
B0034IX2Q4
B00J8HMEO6

Compatible Appliance Models

RF390PXPW0 RF365PXDQ0 RF365PXYN2 RF365PXYW2 RF365PXYQ2 RF365PXDN0 RF365PXDW0 RF365PXYN0 RF3165XPW0 RF330PXPW0 RM288PXS0 RF3020XPW0 RF365PXXW1 RF365BXVN0 RF365PXXN0 RF365PXYW0 RF365BXPW1 RF370PXYN0 RM288PXP0 RF360BXYW0 RF310PXPW0 RF363PXPT1 RF365PXYN1 RF360BXYW2 RF365BXVW0 RF365PXXN1 RF365PXXW2 RF395PXPW1 RF360BXYN0 RF365PXYQ0 RF302BXPW0 RF361BXDW0 RF375PXPW0 RF3100XPW0 RF360BXDN0 RF362BBDQ0 RF365PXXW0 RF375PXPW1 RF3300XPW0 RF3620XPW1 RF362BBDW0 RF363PXPT0 RF365PXXN2 RF367BXPW0 RF3750XPW1 RF395PXPW0 RF360BXDW0 RF361PXXW0 RF365PXDZ0 RF3750XPW0 RF385PXPW0 RJE3750W1 RM278BXS0 RF362BXBQ1 RF365BXPW0 RF367PXDN0 RF370PXYW0 RF360BXYW1 RF361PXXW1 RF365BXYN0 RF365BXYW0 RF365PXYW1 KERS502SWB0 RF362BBDN0 RF365PXYQ1 RF398PXPW0 RF398PXPW1 RJE3750W2 RM278BXP0 RM278BXV0 RM288PXS9 RM988PXPW0 RF3000XPW0 RF3365XPW0 RF361PXXW2 RF3620XPW0 RF365PXWW0 RF370PXYW2 RF385PXPW1 RJE3000W1 RM278BXP1 RM988PXPW1 KEMI300SBL1 KERS505SWB0 KERS505SWB1 RF302EXPW0 RF306BXPW0 RF313PXPT0 RF317PXPW0 RF333PXPT0 RF350PXPW0 RF3600XPW0 RF3600XPW1 RF361BXDN0 RF365EXPW1 RF367PXDW0 RF370PXYW1 RF387PXPW0 RJE3021W1 RJE395PW1 RM255PXP0 RM288PXP1 99521 (1988) 99528 (1988) 99531 (1988) 99538 (1988) 99541 (1988) 99548 (1988) KEMI300SBL0 KEMI300VBL2 KERS500SWB0 KERS500SWB1 KERS502SWB1 RE953PXPT0 RE953PXPT1 RE953PXPT2 RE963PXPT0 RE963PXPT1 RE963PXPT2 RF303BXPW0 RF305EXPW0 RF3120XPW0 RF3140XPN0 RF316EXPW0 RF327PXPW0 RF335EXPW0 RF336EXPW0 RF336PXPW0 RF345PXPW0 RF360BXPW0 RF360BXYN1 RF360BXYN2 RF360EXPW0 RF362BBDZ0 RF362BXBN1 RF362BXBW0 RF362BXBW1 RF365BXPN0 RF365BXPN1 RF365BXYN1 RF365BXYW1 RF365EXPW0 RF365PXWN0 RF365PXYZ2 RF370PXDN0 RF370PXDW0 RF370PXYN1 RF370PXYN2 RJE3000W9 RJE302BW1 RJE310PW0 RM278PXP0 RM955PXPW0 RM955PXPW1 RM973BXPT0 RM973BXPT1 RM988PXLW9 TER56W2BN0 TER56W2BW0

Restore strong, even baking performance with this OEM‑compatible WP312309 bake element.
