Bake Element for General Electric, Hotpoint, PS956157, AP3202950, WB44X10031

Bake Element | Replaces GE® WB44X10031

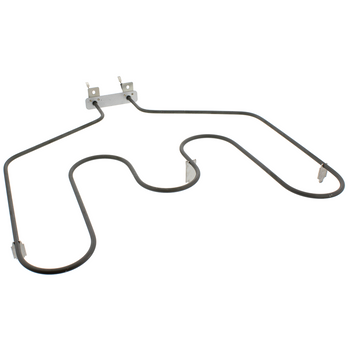

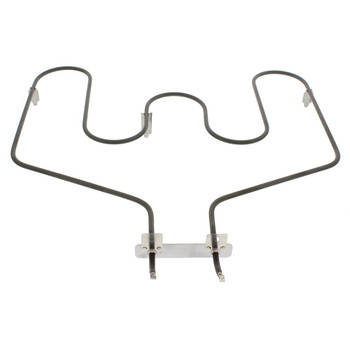

Brand new Bake Element replacing General Electric, Hotpoint, and RCA part WB44X10031. The design may vary slightly from your original element but installs and functions the same.

This lower oven element restores proper baking performance when the oven is not heating, heating unevenly, or has a burned‑out coil.

Dimensions & Specifications

• Width: 17‑1/4" (side to side at widest point)
• Length: 15‑1/2" (mounting bracket to back)
• Terminal Offset: 2‑3/8" from terminal end to mounting bracket (measured at an angle)
• Terminal Spacing: 2‑5/8" between terminals
• Terminal Type: Male spade
• Calrod: Bent upward at end toward the two mounting holes
• Wattage: 2585 Watts
• Voltage: 240 Volts

⚠️ Symptoms This Part Fixes

• Oven not heating
• Uneven baking or cold spots
• Visible burn marks or breaks in element
• Oven takes too long to preheat

Replaces Part Numbers

AP3202950
1087451
AH956157
EA956157
PS956157

Compatible Oven Models

ZET1038BF1BB , ZET1038BF3BB , ZET1038PF1SS , ZET1038PF3SS , ZET1038PF4SS , ZET1038SF1SS , ZET1038SF2SS , ZET1038SF3SS , ZET1058BF1BB , ZET1058BF2BB , ZET1058BF3BB , ZET1058PF1SS , ZET1058PF3SS , ZET1058PF4SS , ZET1058SF1SS , ZET1058SF2SS , ZET1058SF3SS

Restore full baking performance with this OEM‑compatible GE bake element — engineered for long‑lasting, even heating.
