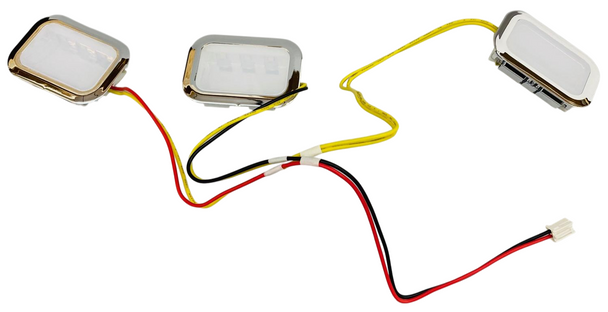

Refrigerator LED Light Harness fits Whirlpool, AP6994127, PS16221128, W11484839

Refrigerator Chrome Bezel LED Light Harness | 3‑Module Series Assembly | Replaces Whirlpool® W11484839 | OEM‑Compatible

Brighten your refrigerator interior with this brand‑new chrome bezel LED light harness, engineered as an OEM‑style replacement for Whirlpool® part numbers W11484839, W11234022, AP6994127, and PS16221128. This assembly includes three LED modules wired in series, delivering consistent, energy‑efficient lighting throughout the refrigerator compartment.

Perfect for units experiencing dim lighting, flickering LEDs, or complete light failure due to a faulty harness or burned‑out module.

⚙️ Key Features

• OEM‑style replacement for Whirlpool® LED light harness assemblies
• Three LED modules wired in series for uniform brightness
• Chrome bezel design matches original refrigerator aesthetics
• Energy‑efficient LED lighting with long service life
• Direct‑fit harness for quick, reliable installation
• Condition: Brand New – Unused

Replaces Part Numbers

W11484839, AP6994127, W11234022, PS16221128

Fits Refrigerator Models

KRFF507HBS02 KRFF507HBS04 KRFF507HPS02 KRFF507HPS03 KRFF507HPS04 KRFF507HWH02 KRFF507HWH03 KRFF577KBS01 KRFF577KBS03 KRFF577KBS06 KRFF577KPS01 KRFF577KPS02 KRFF577KPS03 KRFF577KPS05 KRFF577KPS06 KRMF536RBS01 KRMF536RPS01 KRMF706EBS04 KRMF706EBS05 KRMF706EBS06 KRMF706ESS04 This LED harness fits a wide range of Whirlpool® refrigerators using the part numbers listed above. Please verify compatibility with your model number before purchase.

Common Fixes

• Dim or flickering refrigerator lighting
• One or more LEDs not illuminating
• Complete interior light failure
• Burned‑out LED module within the series circuit
• Discolored or cracked light bezel

️ Installation Tips

• Unplug refrigerator before servicing any electrical components
• Remove existing bezel and disconnect the harness connector
• Install new harness, ensuring all three modules are properly seated
• Verify wiring alignment to maintain correct series operation
• Test lighting before reinstalling covers or trim
• If lights still do not illuminate, inspect upstream power supply or control board

Restore bright, reliable interior lighting with this OEM‑compatible chrome bezel LED harness — the correct replacement for Whirlpool® W11484839 and related part numbers.
