Parts for Sub Zero

Refrigerator Icemaker for Sub Zero, 4200520, 4200520S, 4200522

(No reviews yet) Write a Review
SKU:
SZ4200520
UPC:
687152219421
MPN:
4200520
Condition:
New
Availability:
Restocking Frequently – Order Now Before It’s Gone

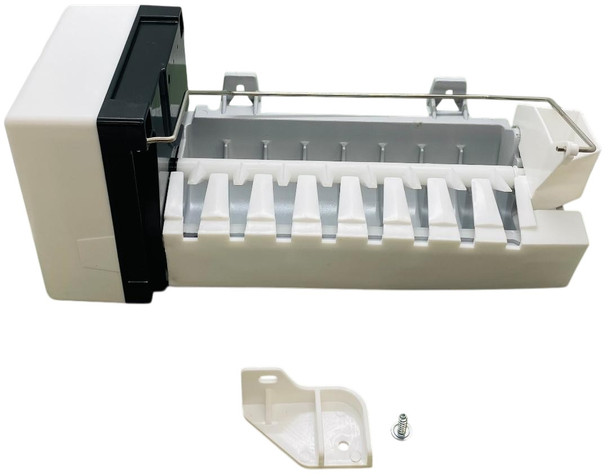

  • 4200520 - Refrigerator Icemaker for Sub Zero
  • 4200520 - Refrigerator Icemaker for Sub Zero
$73.18

Free ground shipping on orders over $35.00! Orders under $35.00 are a flat rate of $6.00! In the 48 Contiguous US States Only.



Frequently bought together:

Description

Refrigerator Ice Maker – Replaces Sub-Zero 4200520 / 4200520S / 4200522 | OEM-Compatible

Restore reliable ice production with this brand-new modular ice maker assembly, designed to replace Sub-Zero part numbers 4200520, 4200520S, and 4200522. This 8-cube crescent-style ice maker includes the arm and leveling bracket and is engineered for seamless integration into a wide range of Sub-Zero refrigerator models. Ideal for resolving issues like slow ice production, misshaped cubes, or complete ice maker failure.

⚙️ Product Features:

  • Crescent-style 8-cube ice mold
  • Includes arm and leveling bracket
  • OEM-style fit and connector layout
  • Compatible with modular Sub-Zero ice systems
  • Condition: Brand New – Unused

Replaces OEM Part Numbers:

4200520, 4200520S, 4200522

✅ Compatible Models Include:

501f, 511, 532, 542, 550, 561, 590, 22IM, 201FD, 201RIM, 245, 249FF, 211, 241, 251, 2411, 2511, 361, 3211, 801, 700TCI, 700TFI, 611, 650, 680, 690

️ Installation Tips:

  • ⚡ Disconnect refrigerator from power before servicing
  • Remove ice bucket and access mounting screws
  • Take reference photos of wire harness and arm position
  • Detach old ice maker and install new unit using original hardware
  • Connect wire harness securely and ensure arm is properly seated
  • Run a test cycle to confirm water fill and cube ejection

⚠️ Installation Disclaimer:

This part is intended for use by qualified appliance technicians or experienced DIYers. Buyer is responsible for verifying compatibility with their specific refrigerator model. Improper installation may result in water leaks, electrical failure, or damage to internal components. Returns are not accepted on installed or used parts due to contamination and handling risks.

Consistent ice. OEM-grade fit. Built for Sub-Zero refrigeration systems.
