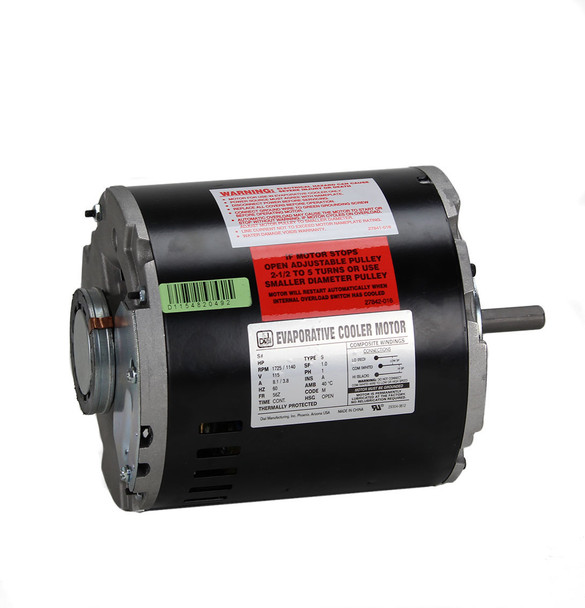

Evaporator Cooler (Swamp Cooler) ¾ HP, 2-Speed, 115V, 1725/1140RPM Motor, 2206

Dial 2206 Evaporative Cooler Motor | ¾ HP | 2-Speed | 115V | UL Recognized | High Efficiency

Upgrade your residential swamp cooler with this brand-new Dial Manufacturing 2206 motor. Engineered for consistent airflow and built to withstand demanding conditions, this ¾ HP, 2-speed motor delivers reliable cooling performance for evaporative systems rated up to 11,000 CFM. Its high-efficiency design, thermal protection, and heavy-duty construction make it a trusted solution for long-term use.

⚙️ Technical Specifications:

• ⚡ Voltage: 115V | Amps: 10.8 | Frequency: 60 Hz
• Speeds: 2 (1725 / 1140 RPM)
• Shaft Diameter: ½"
• Frame: NEMA 56Z | Phase: Single | Motor Type: Type S
• ️ Ambient Temp Rating: 40°C | Housing: Open Dripproof
• Duty Cycle: Continuous | Thermal Protection: Auto Reset Overload
• Heavy Duty Bronze Bearing | Superior Starting Switch
• ️ UL Recognized Component | High Temperature Insulation System
• Condition: Brand New – Motor Only (Base Not Included)

✅ Ideal For:

• Residential evaporative (swamp) coolers rated up to 11,000 CFM
• Roof-mounted, window-mounted, and mobile cooler units
• Replacement or upgrade of worn-out ¾ HP motors

️ Installation Tips:

• ⚡ Disconnect power before installation
• Remove old motor and inspect mounting bracket and wiring
• Mount new motor using compatible NEMA 56Z bracket (base not included)
• Connect grounded 3-prong plug to cooler junction box
• Test motor operation at both speeds before full reassembly
• Ensure proper belt tension and pulley alignment for optimal airflow

⚠️ Installation Disclaimer:

This motor is intended for use by qualified technicians or experienced DIYers. Buyer is responsible for verifying compatibility with their specific cooler model and mounting configuration. Improper installation may result in motor failure, electrical hazards, or damage to cooler components. Returns are not accepted on installed or used motors due to exposure and contamination risks.

Built to last. Ready to cool. Trusted by Dial Manufacturing for high-performance evaporative systems.
