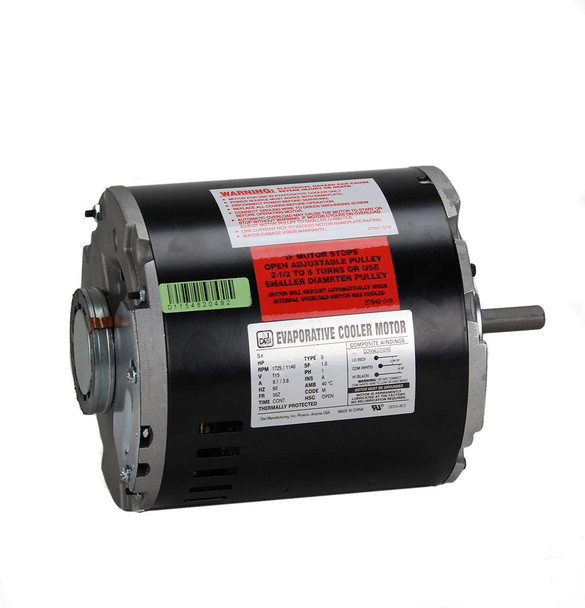

Evaporator Cooler (Swamp Cooler) ½ HP, 2-Speed, 115V, 1725/1140RPM Motor, 2204

Dial 2204 Evaporative Cooler Motor | ½ HP | 2-Speed | 115V | UL Recognized | NEMA 56Z Frame

Restore powerful airflow to your residential evaporative cooler with this brand-new Dial Manufacturing ½ HP replacement motor, part #2204. Engineered for durability and high efficiency, this 2-speed motor delivers reliable performance in swamp coolers rated up to 7,500 CFM. Featuring a NEMA 56Z frame, bronze bearings, and a high-temperature insulation system, it’s built to withstand demanding conditions while maintaining smooth operation.

⚙️ Technical Specifications:

• ⚡ Voltage: 115V | Amps: 8.1 | Hertz: 60Hz
• Speeds: 2 (1725 / 1140 RPM)
• Shaft Diameter: ½"
• Frame: NEMA 56Z | Phase: Single | Type: S
• ️ Ambient Temp Rating: 40°C | Housing: Open Dripproof
• ️ Thermally Protected with Auto Reset Overload
• Heavy Duty Bronze Bearing | Superior Starting Switch
• Condition: Brand New – Motor Only (Base Not Included)

✅ Ideal For:

• Residential evaporative (swamp) coolers rated up to 7,500 CFM
• Roof-mounted, window-mounted, and mobile cooler units
• Replacement or upgrade of worn-out ½ HP motors

️ Installation Tips:

• ⚡ Disconnect power before installation
• Remove old motor and inspect mounting bracket and wiring
• Mount new motor using compatible NEMA 56Z bracket (base not included)
• Connect grounded 3-prong plug to cooler junction box
• Test motor operation at both speeds before full reassembly
• Ensure proper belt tension and pulley alignment for optimal airflow

⚠️ Installation Disclaimer:

This motor is intended for use by qualified technicians or experienced DIYers. Buyer is responsible for verifying compatibility with their specific cooler model and mounting configuration. Improper installation may result in motor failure, electrical hazards, or damage to cooler components. Returns are not accepted on installed or used motors due to exposure and contamination risks.

High-efficiency cooling. Built to last. Trusted by Dial Manufacturing.
