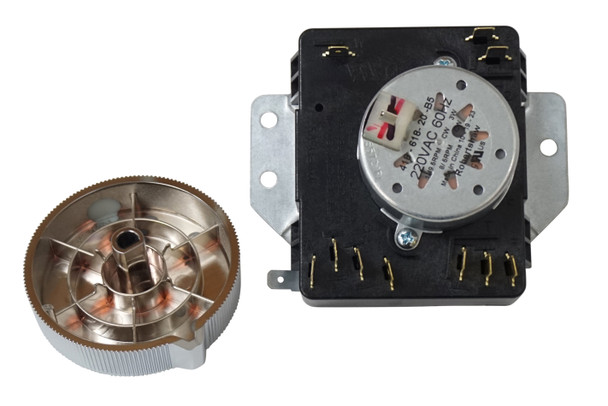

Dryer Timer 60Hz 220VAC fits Whirlpool, AP7215858, PS17216594, W11685947

(No reviews yet) Write a Review
SKU:
W11685947
UPC:
798506322176
MPN:
W11685947
Condition:
New
Availability:
Restocking Frequently – Order Now Before It’s Gone
  • W11685947 - Dryer Timer 60Hz 220VAC fits Whirlpool
  • W11685947 - Dryer Timer 60Hz 220VAC fits Whirlpool
  • W11685947 - Dryer Timer 60Hz 220VAC fits Whirlpool
  • W11685947 - Dryer Timer 60Hz 220VAC fits Whirlpool
$56.28

Free ground shipping on orders over $35.00! Orders under $35.00 are a flat rate of $6.00! In the 48 Contiguous US States Only.



Frequently bought together:

Description

⏱️ Dryer Timer | Compatible with Whirlpool® W11685947 | 220V 60Hz | OEM-Style Performance

Brand New – Dual-Speed Timer for Precise Cycle Control

Restore accurate drying cycles with this high-quality dryer timer replacement, compatible with part number W11685947. Designed to regulate heating and motor functions, this timer ensures consistent drying and automatic shutoff. Fits select electric dryers from Whirlpool®, Maytag®, KitchenAid®, Kenmore®, and affiliated brands.

⚙️ Product Specifications:

  • Voltage: 220–240 VAC
  • Frequency: 60 Hz
  • Motor Speeds: 1/49.5 RPM CW @ 3W and 8/5 RPM CW
  • Pins: OEM 10-pin layout
  • Mounting: Standard screw-in bracket
  • Condition: Brand New – Unused

Replaces These Part Numbers:

W11685947, W11566735, AP7215858, PS17216594

✅ Compatible Brands:

  • Whirlpool®
  • Maytag®
  • KitchenAid®
  • Jenn-Air®
  • Kenmore®
  • Roper®
  • Estate®
  • Amana®

Common Fixes:

  • ❌ Dryer won’t start or shut off
  • ⏱️ Timer knob not advancing
  • ⚠️ Inconsistent drying cycles
  • Stuck on one setting

️ Installation Tips:

  • Disconnect power before servicing
  • Access control panel and locate timer assembly
  • Remove mounting screws and disconnect wire harness
  • Match pin layout and install new timer securely
  • ✅ Test drying cycle before reassembling panel

⚠️ Compatibility Disclaimer:

This timer is intended for use only with compatible electric dryer models. Buyer is responsible for verifying part number and model compatibility before purchase. Installation should be performed by a qualified technician or experienced DIYer. Returns are not accepted on installed or handled items due to safety and contamination risks.

Precision timing. Reliable cycles. OEM-style performance compatible with Whirlpool® and affiliated dryers.
