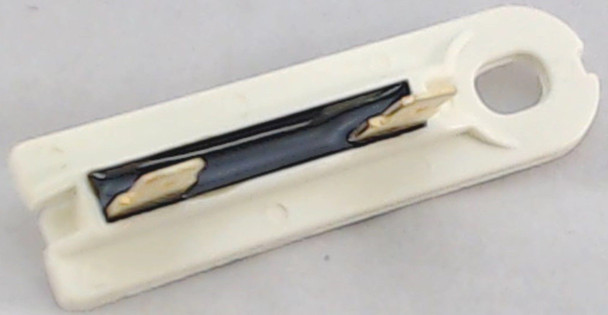

Dryer Thermal Fuse fits Whirlpool, Kenmore, AP6034383, PS11766766, W10909685

(No reviews yet) Write a Review
SKU:
3392519-
UPC:
798506320370
MPN:
W10909685
Condition:
New
Availability:
Restocking Frequently – Order Now Before It’s Gone
$2.15

Free ground shipping on orders over $35.00! Orders under $35.00 are a flat rate of $6.00! In the 48 Contiguous US States Only.



Frequently bought together:

Description

Dryer Thermal Fuse | Replaces Whirlpool W10909685 | Fits Kenmore, Sears, Roper

Protect your dryer from overheating with this brand-new thermal fuse, part number W10909685. Designed for automatic dryers from Whirlpool®, Sears®, Kenmore®, Roper®, and Estate®, this high-limit safety fuse interrupts power to the heating element when internal temperatures exceed safe operating limits.

⚙️ Product Features:

  • Temperature Rating: 91°C / 196°F
  • Terminal Size: 3/16" male spade connectors
  • Mounting Location: Blower wheel housing
  • Function: One-time thermal fuse – cannot be reset
  • Diagnostic Tip: Shows continuity when good, no continuity when blown
  • Condition: Brand New – Unused

Replaces Part Numbers:

  • W10909685
  • AP6034383
  • 4461025
  • PS11766766
  • W10693363

✅ Compatible Brands:

  • Whirlpool
  • Sears / Kenmore
  • Roper
  • Estate

✅ Compatible Dryer Models Include:

  • MED5500FC2
  • MED5500FW2
  • MGD5500FC1
  • MGD5500FW1
  • MGD8200FC1
  • MGD8200FW1
  • WED92HEFBD2
  • WED92HEFC2
  • WED92HEFU2
  • WED92HEFW2
  • WGD85HEFC1
  • WGD85HEFW1
  • YWED8000DW4
  • YWED85HEFC2
  • YWED85HEFW2

Installation Tips:

  • Disconnect power before servicing the dryer
  • Remove rear panel to access blower housing
  • Locate and remove the old fuse using a screwdriver
  • Install the new fuse using existing mounting screws
  • Reconnect wires to 3/16" terminals and test continuity

⚠️ Installation Disclaimer:

This thermal fuse is intended for use only with compatible Whirlpool-family dryers. Buyer is responsible for verifying model and part number compatibility before purchase. Installation should be performed by a qualified technician. Returns are not accepted on installed or handled items due to electrical and contamination risks.

Reliable protection. OEM-grade safety. Built for Whirlpool and compatible dryers.
