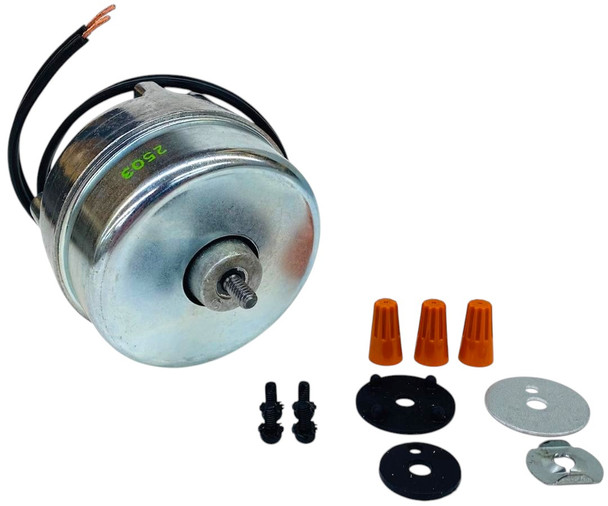

Condensor Fan Motor for Whirlpool, Kenmore, Sears, AP3120994, PS395284, 833697

Condenser Fan Motor | Replaces Whirlpool 833697 | OEM-Compatible

Restore proper airflow and cooling efficiency with this brand-new condenser fan motor, engineered to replace Whirlpool part number 833697. Compatible with a wide range of Whirlpool®, Sears®, Kenmore®, Roper®, Estate®, and KitchenAid® refrigerators, this OEM-style motor ensures reliable condenser coil ventilation and compressor protection.

⚙️ Technical Specifications:

• Power: 2 Watts | 115 Volts | 0.28 Amps
• Speed: 1550 RPM
• ↩️ Rotation: Clockwise (viewed opposite shaft end)
• Shaft: 1/4" threaded with nut & washer included
• ️ Mounting: 3 holes opposite shaft end, spaced 2-1/2" center-to-center
• Wire Leads: 25" with insulated ring terminals
• Condition: Brand New – Unused
• Also replaces GE part number WX4X990

Replaces Part Numbers:

AP3120994, PS395284, 10448601, 10448602, 10448603, 10522101, 10522102, 10522104, 10884501, 10884502, 10884504, 10884506, 1101025, 1101026, 1101073, 1101140, 1105656, 1105657, 1107713, 1107714, 1121292, 1129383, 12001314, 205943, 205953, 21012-1, 2149963, 2154725, 2154735, 2154798, 2154998, 2162431, 2199155, 237129, 27515-1, 28056-1, 28056-12, 28056-13, 28056-14, 28056-15, 28056-16, 28056-2, 28056-3, 28056-4, 28056-5, 28056-6, 28056-7, 28056-8, 28056-9, 311168, 4343855, 4344273, 482737, 483019, 483079, 483213, 510634, 515272, 515273, 515396, 517322, 517385, 52186-9, 530423, 530760, 531106, 531585, 531594, 544058, 54503-2, 549047, 549048, 549266, 549299, 552919, 553235, 553236, 56804, 604292, 605292, 606289, 606339, 61001016, 61001018, 61001562, 67560-1, 67560-10, 67560-2, 67560-3, 67560-4, 67560-5, 67560-7, 67560-8, 68445-1, 68445-3, 68445-6, 68445-7, 68481-1, 68481-2, 68481-3, 68481-4, 69289215, 799397, 8118, 831350, 850015, 851445, 851476, 851578, 851618, 851619, 851629, 851630, 851735, 876443, 938077, 938078, 938164, 938271, 938375, 945466, 945566, 945583, 946538, 946539, 946679, 989532, A0287801, B0532506, B0540006, B0544605, B0547205, B0551904, B0552001, B0552004, B0552604, B5603501, B5603504, B5646204, B5646301, C3661701, C3661801, C7584001, C8736901, C8766901, C8809801, C8891701, D0709217, D7584001, D7584002, R0150001, R0150002, R0950046, R0950211, Y0054175, Y0055586, Y0056804, Y0311168, Y61001016

✅ Fits Models:

Please verify with manufacturer or part lookup tool before purchase.

️ Installation Tips:

• Disconnect appliance from power before servicing
• Access condenser fan area near compressor
• Remove old motor and mounting hardware
• Install new motor using included nut and washer
• Connect wire leads securely to existing terminals
• ✅ Test fan operation and airflow after reassembly

⚠️ Installation Disclaimer:

This condenser fan motor is intended for use only with compatible Whirlpool-family refrigerator models. Buyer is responsible for verifying model and part number compatibility before purchase. Installation should be performed by a qualified technician or experienced DIYer. Seller is not liable for damage or injury resulting from improper installation or servicing.

Reliable airflow. Quiet operation. OEM-grade motor for Whirlpool, Kenmore & compatible refrigerators.
