5.6" Dia Direct Drive Motor HP Range 1/2"-1/6" 115V 1075 RPM 1/2x5.5" Shaft 5460

Direct Drive Fan & Blower Motor | PSC | 1/2–1/6 HP | 115V | Part #5460

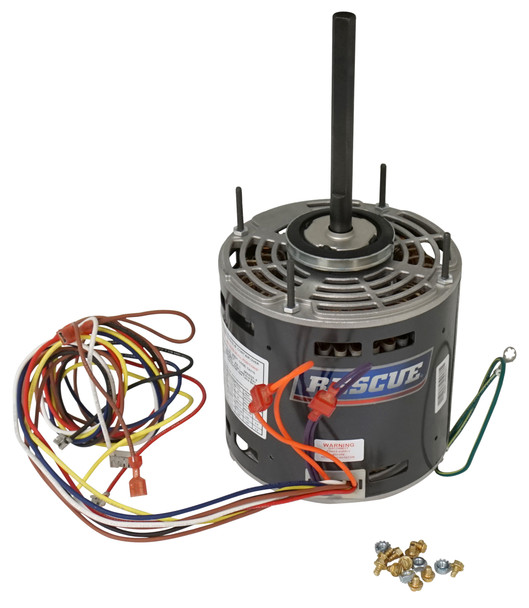

Upgrade your HVAC system with this brand-new permanent split capacitor (PSC) direct drive fan and blower motor, part #5460. Engineered for both residential and commercial use, this motor features a compact 5.6" diameter, open air over (OAO) enclosure, and reversible rotation for flexible installation. Designed for continuous duty operation, it includes stud extensions for popular mounting configurations and hub ring mounts for Rheem compatibility.

⚙️ Product Specifications:

• Electrical Type: Permanent Split Capacitor (PSC)
• ⚡ Voltage: 115V
• Horsepower Range: 1/2 to 1/6 HP
• Rotation: Reversible
• Speeds: 4-speed operation
• Motor Diameter: 5.6"
• Shaft Type & Size: N-type, 5.5"
• Shell Type & Size: XL, 5.3"
• ️ Insulation Class: Class B
• Enclosure: Open Air Over (OAO)
• Mounting: All-angle mount with 2.5" hub rings
• Stud Extensions: Included for popular models
• ️ Overload Protection: Automatic reset thermal protector
• Leads: 24 leads for versatile wiring
• ⚙️ Bearings: All-angle thrust system
• Capacitor: Designed for use with 370V capacitors (not included)
• ️ Shell Holes: Includes 4 holes for Rheem mount compatibility
• Amps: 7.3A
• RPM: 1075

️ Installation Tips:

• Disconnect power before servicing or installing the motor
• Confirm mounting orientation and bracket compatibility
• Use included hub rings and stud extensions for secure installation
• Connect leads according to motor diagram and capacitor rating
• Test rotation direction and airflow before final assembly
• Ensure shaft alignment and clearance for fan blades or blower wheels

⚠️ Installation Disclaimer:

This motor is intended for use by licensed HVAC technicians or experienced installers. Buyer is responsible for verifying compatibility with their specific air handler, furnace, or blower system. Improper installation may result in electrical failure, overheating, or mechanical damage. Returns are not accepted on installed or wired motors due to safety and contamination risks.

Heavy-duty performance. Flexible mounting. Built for HVAC reliability.
