5.6" Dia. 1/4 HP 208/230V 1 Spd 825 RPM, 70°C Extreme Heat Condenser Motor 2137

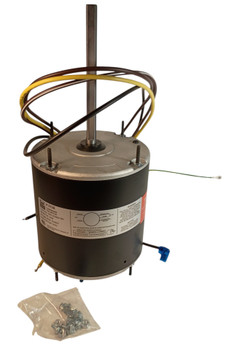

Dial Manufacturing 2137 – 1/4 HP Extreme Heat Condenser Fan Motor | 208/230V

Brand New – Built for High-Temperature HVAC Systems

Engineered for durability in demanding environments, the Dial 2137 condenser fan motor is rated for ambient temperatures up to 70°C (158°F). Ideal for residential and commercial condensing units, this motor delivers reliable airflow and long-lasting performance.

⚙️ Key Features:

• Horsepower: 1/4 HP
• Voltage: 208 / 230V
• Amperage: 1.5 A
• RPM: 825
• Capacitor: 7.5 MFD / 370V
• Motor Type: PSC (Permanent Split Capacitor)
• Frame Size: 48
• Enclosure: TEAO (Totally Enclosed Air Over)
• Insulation Class: F
• Ambient Temp: Rated for 70°C / 158°F
• Mounting: Extended studs, shell holes (screws included), belly band, shaft Up/Down
• Motor Diameter: 5.625 in.
• Shaft Diameter: 0.5 in.
• Shaft Extension: 6 in.
• Lead Length: 36 in.
• Rotation: Reversible
• Protection: Auto thermal shutoff
• Certification: UL Recognized
• Frequency: 60 Hz / Single Phase

Replaces These Part Numbers:

• Diversitech WG840204HT
• Mars 20404
• Packard 40825F
• Economaster EM3404F
• Century / AO Smith FE1028SF
• Smart Electric SE3378
• US Motors / Emerson 1874H

Built to last. Ready to perform. The Dial 2137 motor is your trusted solution for high-temperature condenser fan applications.

⚠️ Always verify compatibility before purchase. Professional installation recommended.
